Expert Selective Pallet Rack Manufacturer
What is a Heavy-Duty Selective Pallet Rack?
Selective racking is one of the most common and versatile storage systems for warehouses and distribution centers. It allows for access from both sides and can be expanded or reconfigured to meet changing storage needs. Designed to provide easy access to every pallet within the system, it is ideal for businesses handling a wide variety of stock-keeping units (SKUs) and offers a scalable solution for growing enterprises.
Single-Deep Pallet Rack
A Single-Deep Pallet Rack is a pallet storage system in which pallets are stored one pallet deep from the warehouse aisle. Each pallet position has direct access from the aisle, making it one of the most accessible and flexible pallet racking configurations.
How Does a Single-Deep Pallet Rack Work?
In a single-deep configuration, pallets are positioned side by side along the rack beam, but there is only one pallet behind each other.
For example:
Aisle → [Pallet]
A forklift can approach the pallet directly from the aisle, without having to move another pallet first.
Double-Deep Pallet Rack
A Double-Deep Pallet Rack is a type of pallet racking system designed to store pallets two positions deep rather than only one position deep. It increases storage density by placing one pallet behind another in each rack position.
How does a Double-Deep Pallet Rack work?
Unlike a standard selective pallet rack, where every pallet is directly accessible from the aisle, a double-deep system allows pallets to be stored two rows deep.
For example:
Aisle → [Pallet] [Pallet]
The second pallet is accessed through the first pallet, so the system generally requires a suitable reach truck or double-deep forklift with extended reach capability.
| Feature | Single-Deep Pallet Rack | Double-Deep Pallet Rack |
|---|---|---|
| Pallet depth | 1 pallet deep | 2 pallets deep |
| Pallet accessibility | Direct | Front pallet may block rear pallet |
| Storage density | Moderate | Higher |
| SKU selectivity | Excellent | Moderate |
| Inventory management | Easy | More complex |
| FIFO suitability | Excellent | More limited |
| Best for | Many SKUs and high accessibility | High-volume SKUs and higher density |
Factory Direct ● Free Design ● Strict Quality Control ● Global Shipping ● Exported to 80+ Countries ● 20+ Years Experience ● One-Stop Service ● Sample Available
Products Parameter
| Product Name | Selective Racking | Loading Capacity | 1000kg per layer | Layer | 1-5 layers |
| Raw Material | Mild Steel Q235/Q395 | Surface Treatment | Powder coating, Galvanized | Warranty | 1 year |
| Size | Customized | OEM&ODM | Support | Color | Customized |
| Certification | MHI, RMI | Lifespan | Up to 3 to 5 years with proper handling | ||
| Application | Warehouse, Logistics, Textile Industry, Tyre Industry, Auto Industry | ||||
Common Parameter
| Part Number | Description | Specification | Color |
|
YST-PR9636 |
Upright 36"×96" | 15 ga.,5"×8" BP | Customized |
| YST-PR12036 | Upright 36"×120" | 15 ga.,5"×8" BP | Customized |
| YST-PR14436 | Upright 36"×144" | 15 ga.,5"×8" BP | Customized |
| YST-PR19236 | Upright 36"×192" | 14 ga.,5"×8" BP | Customized |
| YST-PR24036 | Upright 36"×240" | 12 ga.,8"×8" BP | Customized |
| YST-PR9642 | Upright 42"×96" | 15 ga.,5"×8" BP | Customized |
| YST-PR12042 | Upright 42"×120" | 15 ga.,5"×8" BP | Customized |
| YST-PR14442 | Upright 42"×144" | 15 ga.,5"×8" BP | Customized |
| YST-PR19242 | Upright 42"×192" | 15 ga.,5"×8" BP | Customized |
| YST-PR9648 | Upright 48"×96" | 15 ga.,5"×8" BP | Customized |
| YST-PR12048 | Upright 48"×120" | 15 ga.,5"×8" BP | Customized |
| YST-PR14448 | Upright 48"×120" | 15 ga.,5"×8" BP | Customized |
| YST-PR19248 | Upright 48"×120" | 14 ga.,5"×8" BP | Customized |
| YST-PR24048 | Upright 48"×120" | 14 ga.,5"×8" BP | Customized |
Products Structure Features
Robust and Secure Structural Design
Uprights feature Z-shaped edges and teardrop-style perforations; combined with snap-in locking slots and a six-point locking mechanism, they ensure multi-directional beam stability. The locking clips engage automatically and remain visible, facilitating easy inspection and adjustment. Optional wire decking or support bars are available to further enhance safety and stability.
Flexible Adjustment and High Load Capacity
Beam heights are adjustable to accommodate various pallet and product sizes. With a maximum load capacity of 2 tons per level, the warehouse pallet racking system is ideal for heavy-duty storage, balancing flexibility with reliability.
Efficient Operation and Space Utilization
Pallets are accessible from both sides of the rack, streamlining order picking and inventory management. The modular upright design allows for unlimited expansion to meet growing business needs while maximizing vertical space and warehouse capacity utilization.
Durability and Cost-Effectiveness
Surfaces undergo a three-stage anti-rust treatment, providing excellent corrosion resistance and extending equipment lifespan. The system offers a low initial investment cost, balancing affordability with long-term value—making it an ideal choice for growing enterprises.
Design
Every warehouse has different storage requirements, layouts, and operational workflows. YST Logistics supports custom designs for selective pallet racking, helping customers develop racking systems that fit their specific applications and requirements.
From initial planning to final production, YST Logistics provides comprehensive, customized solutions rather than relying on a one-size-fits-all approach. Our team can work with your warehouse layout, pallet specifications, load requirements, and available space to develop a suitable racking configuration.
To help customers better understand the proposed solution before production, YST Logistics can provide 3D drawings for customized racking projects. These drawings help visualize the rack configuration, dimensions, positioning, and overall warehouse arrangement, making it easier to review the design and identify potential adjustments at an early stage.
◀ As shown in the picture
Selective pallet racking systems can be tailored to your operational needs. Depending on the application, customers can customize key specifications such as rack height, length, beam levels, bay configuration, and load capacity. This flexibility helps make better use of available warehouse space while maintaining practical access to stored pallets.
▲▼As shown in the picture
Use in combination
In addition to complete pallet rack systems, YST Logistics also supplies a range of pallet rack accessories and components, allowing customers to purchase compatible products together with their industrial pallet racking systems. This provides a convenient one-stop solution for warehouse storage projects and helps ensure that the selected accessories work effectively with the overall rack configuration.
Safety Notice
- The installation and use of shelving units must adhere to safe operating procedures; ensure they are properly leveled and plumb to prevent tilting or collapse.
- Maintenance and upkeep are crucial; regular inspections and repairs should be conducted to ensure the shelving remains in good condition.
- Items stored on the shelves should be arranged properly to avoid overloading or instability.
- Warehouse shelving should be equipped with appropriate safety features—such as guardrails and warning signs—to alert employees to safety considerations.
Quality Management
Potential Problems with Poor-Quality Heavy Duty Pallet Racking
Low-quality warehouse racking may reduce initial costs, but it can lead to greater risks and expenses over time. Poor materials and workmanship can affect rack performance and service life.
1. Reduced Stability and Service Life
Poor-quality steel, weak welding, or insufficient strength can reduce rack stability and durability. Over time, this may cause deformation, component damage, or rack failure.
2. Increased Risk of Cargo Damage
Low-quality racking may not provide adequate support for stored goods. Damaged or deformed components can cause unstable loads, product damage, and operational disruptions.
3. Higher Long-Term Costs
Low-quality selective racking system may cost less initially, but frequent repairs, replacements, and cargo losses can increase long-term costs. A lower purchase price may ultimately lead to greater expenses.
At YST Logistics, quality management is an essential part of every project, not simply a final inspection before shipment. From material selection and production to inspection, packaging, and delivery, we maintain strict quality control throughout the manufacturing process.

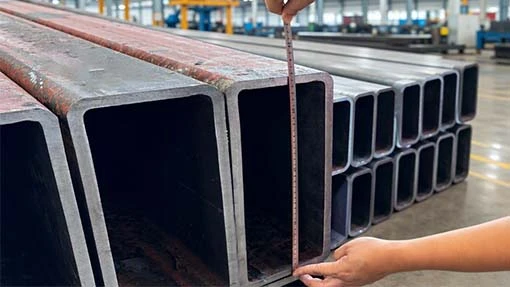

Our professional quality inspection team carefully checks key factors such as material quality, product dimensions, welding, structural integrity, surface treatment, and overall workmanship. Finished racking systems are thoroughly inspected before shipment to help ensure they meet the agreed specifications and application requirements.
With rigorous quality control and reliable manufacturing, YST Logistics is committed to providing high-quality, dependable warehouse racking solutions that customers can rely on for their daily operations.
About YST Logistics
Who is YST Logistics?
YST Logistics is a professional manufacturer and exporter of warehouse storage, material handling, and logistics equipment, based in Qingdao, Shandong, China. The company was established in 2006 and has more than 20 years of industry experience.
YST focuses on helping customers improve warehouse space utilization, material handling efficiency, transportation, and logistics management through practical steel equipment and customized solutions.
YST Logistics is highly competitive in both domestic and international markets, with products sold to numerous countries and regions worldwide.
What Can We Do?
YST Logistics positions itself as a manufacturer rather than a trading company and provides OEM/ODM and customized solutions. Customers can request customized dimensions, colors, designs, and other product specifications according to their applications and warehouse requirements.
For its steel rack products, YST Logistics states that it commonly uses mild steel Q235 and has quality-control procedures covering raw materials, finished products, packaging, and loading. Finished products can also be checked for stability, stacking performance, and loading capacity.
Why Choose YST Logistics?
Manufacturing experience – Established in 2006 with extensive experience in warehouse and material-handling equipment.
Wide product range – From selective pallet racking and post pallets to roll containers and specialized industrial racks.
Customization – OEM/ODM services allow products to be adapted to different warehouse layouts, loads, dimensions, and applications.
Quality management – Product inspections are conducted throughout the manufacturing and shipping process.
One-stop service – YST supports customers from product design and manufacturing through packaging, shipping, customs, and after-sales service.
FAQ
Q: Can YST Logistics accommodate large quantity orders?
A: Absolutely! YST can produce 30 containers of selective pallet racking per week, ensuring that we can fulfill orders of any size, no matter how large.
Q: How does YST Logistics ensure affordability without compromising on quality?
A: YST Logistics prioritizes efficiency and optimization in our production processes, allowing us to offer competitive pricing without sacrificing quality. Additionally, our low minimum order quantities and flexible delivery options further enhance affordability for our customers.
Q: Does YST Logistics provide technical assistance or guidance for product selection?
A: Absolutely! YST Logistics' experts are here to provide technical assistance and guidance to help you select the right products for your projects. Whether you have questions about compatibility, specifications, or installation, we're here to help.
Q: What is the payment method?
A: We accept any convenient and prompt payment methods, but the most widely used one is T/T. The payment term is 30% down payment before production and 70% before shipment.
Q: Can I come to China for a factory inspection?
A: Of course, if you come to China, we will arrange the trip for you. If you are not convenient to come to China, we can also inspect the factory online via video.
We're well-known as one of the leading selective pallet rack manufacturers and suppliers in China. Please feel free to buy high quality selective pallet rack at competitive price from our factory. For customized service, contact us now.
